SOLOPro+ PUSH CAMERA SYSTEM

SOLOPro+ PUSH CAMERA SYSTEM



Download the latest

SOLO Pro+™ Software Update

Download the latest

SOLO Pro+™ Update Instructions

Coiler

SOLOPro+ Available in 100m - 60m - 40m

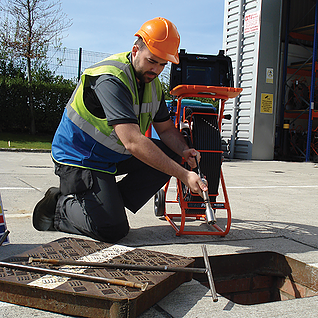

SOLOPro+ has all you need to inspect pipes, document your findings, and create detailed reports for on-site delivery. It captures detailed footage under tough conditions, and its interface offers robust tools – including observation entry and reporting options – and accepts USB and SD media for easy offload of data, video, images and reports. SOLOPro+ is WiFi enabled to allow remote access to stored images and data.

Mini-Cam's mission is simple: to design and build intelligent, reliable drain survey systems with innovative features. The new SOLOPro+ combines the tried and tested best selling SOLOPro and SOLOPro 360° systems, with a host of new features that deliver an improved user experience for efficient inspections and accurate reporting.

Downnload the latest

SOLO Pro+™ Sales leaflet




Control Unit CCU210
Control Unit CCU210

The redesigned control unit features an integral joystick control, ergonomic soft-touch keypad, and user friendly multi-function hot keys which mirror an intuitive on-screen display to enable quick and accurate navigation of the numerous features. The customisable interface displays real-time footage on a 200mm sunlight readable LCD screen, you can zoom video 3X, capture still images, enter up to 16 pages of text, browse thumbnail galleries and select among available languages. Offloading images and data is as simple as plugging in a USB stick or SD Card. The controller runs off mains power, vehicle power or an internal rechargeable 6-hour battery, and comes WiFi enabled to allow remote access to stored images and data, users can simply drag and drop files from CCU to PC, or upload to the Cloud directly on-site. Mini-Cam's ProPIPE reporting software comes as standard with all systems, and WinCan Embedded catalogues allow you to form industry standard reporting directly from the field.

AT YOUR FINGERTIPS
Use the SOLOPro+ Control Unit CCU210 to view, record and annotate inspection footage from any composite video source

Capture Footage

Grab MPEG video and JPEG images, and zoom up to 3X on video.



Enter Observations

Use optional data-entry module to

log inspection findings.



Review Footage

Organize videos and images folders,

then find them using the thumbnail gallery. Review media using standard controls.

Generate Reports

Use optional reporting module to

create an inspection report, then transfer

it to USB media for on-site delivery.

Offload Data

Copy video, images and data to USB or SDHC media for easy transfer to PC and seamless integration with WinCan

reporting and querying capabilities.

Write Screen Text

Type and store up to 16 pages of

on-screen text. Customize text colour,

position and background colour.



Control Hardware

Set sonde frequency, adjust

illumination, and zero/offset meterage.



Configure Preferences

Set language and date/time; establish file formats and naming conventions; adjust camera parameters; choose interface

theme and power-saving scheme; update firmware.



Cameras

Cameras

Mini-Cam's cameras are unrivalled for quality and reliability, the Self Levelling Axial Camera (CAM025) and Pan & Rotate Camera (CAM026) come as standard with the top end SOLOPro+ DUO System. Separate Axial Camera and Pan and Rotate Camera systems are part of the new line-up. Each system is available with a choice of 40m, 60m or 100m reel of rugged construction with a sealed slip ring and new style friction brake.

Self Levelling Axial Camera CAM025

Featuring high powered

LED lighting

Pan & Rotate
Camera CAM026

Featuring high powered LED lighting, motorised focus, 360° endless rotation and ±135° pan.

Self Levelling Axial Camera CAM027

Featuring high powered LED lighting and motorised focus.

Pan & Rotate Zoom
Camera CAM028

Featuring high powered LED lighting

and twin lasers.

Technical Details

Imager: 1/4" colour CCD with DSP (Digital Signal Processor)

Standard: PAL

Effective Pixels: 512 x 582

Resolution: 470 HTVL

Sensitivity: < 1.0 lux

Aperture/Field of View: F2.5 / 75°

Image Orientation: Auto-levelling

Dimensions: (L x W x H) 220 x 41 x 41mm (8.6 x 1.61 x 1.61in)

Weight: 0.617kg (1.36lb)

Illumination System: 4 LED

Illumination Intensity: Adjustable (to 12.5k lux at 150mm)

Construction: Stainless Steel

Pipe Compatibility: 50mm (2") and up

Pipe Adaptor Kit: 3" / 4" /6" Skids

Technical Details

Imager: 1/4" colour CCD with DSP (Digital Signal Processor)

Standard: PAL

Effective Pixels: 512 x 582

Resolution: 470 HTVL

Sensitivity: < 1.0 lux

Aperture/Field of View: F2.5 / 75°

Image Orientation: Auto-levelling

Dimensions: (L  xW x H)120 x 73 x 73mm (4.7 x 2.8 x 2.8in)

Weight: 0.864kg (1.90lb)

Illumination System: 6 LED

Illumination Intensity: Adjustable (to 12.5k lux at 150mm)

Pressure Depth Rating: 1 bar (14.50psi)

Construction: Aluminium / Stainless Steel

Pipe Compatibility: 100mm (4") and up

Pipe Adaptor Kit: 6" / 8" Skids

Technical Details

Standard: PAL

Pressure Depth Rating: 1 bar (14.50psi)

Power Consumption: 6W

Dimensions: (L x W x H) 62 x 52 x 52mm  (2.4x 2.0 x 2.0in)

Weight: 0.25kg (0.55lb)

Technical Details

Imager: 1/4" colour CCD with DSP (Digital Signal Processor)

Standard: PAL

Effective Pixels: approx. 440,000

Resolution: 530 HTVL

Sensitivity: < 1.0 lux

Aperture/Field of View: 46°

Image Orientation: Auto-levelling

Dimensions: (L x W x H) 143 x 80 x 80mm OD  (5.6 x 3.1 x 3.1in OD)

Weight: 1.15kg (2.3lb)

Illumination System: 6 LED

Illumination Intensity: Adjustable (to 12.5k lux at 150mm)

Pressure Depth Rating: 1 bar (14.50psi)

Construction: Aluminium / Stainless Steel

Pipe Compatibility: 150mm (6") and up

Lasers: Twin

Zoom: 10x optical 12x digital

Power Consumption: 10w

Designed and developed in house, Mini-Cam's expanding range of high quality cameras includes our trusted Self Levelling Axial camera for use with the SOLOPro+ system, and the Pan & Rotate with 360 continuous rotation and 135 +/- pan for use with both Proteus and SOLOPro+ systems. Featuring high powered ultra-bright LED lighting and provide optimum illumination for better clarity of images.

Highest quality components are sourced from around the world and our skilled technicians assemble and rigorously test the cameras at our UK production facility. Built for longevity the cameras are rugged, with robust and precise connectors, and engineered to perform with excellent optical qualities.



Coiler

Coiler

Welded steel construction with a protective powder coat finish mean SOLOPro+'s reel stands up to the punishment of daily field use. It's sealed slip ring ensures reliable operation, while measurements from the integral distance counter apppear onscreen. SOLOPro+ reel is available in 3 sizes; 40m, 60m and 100m

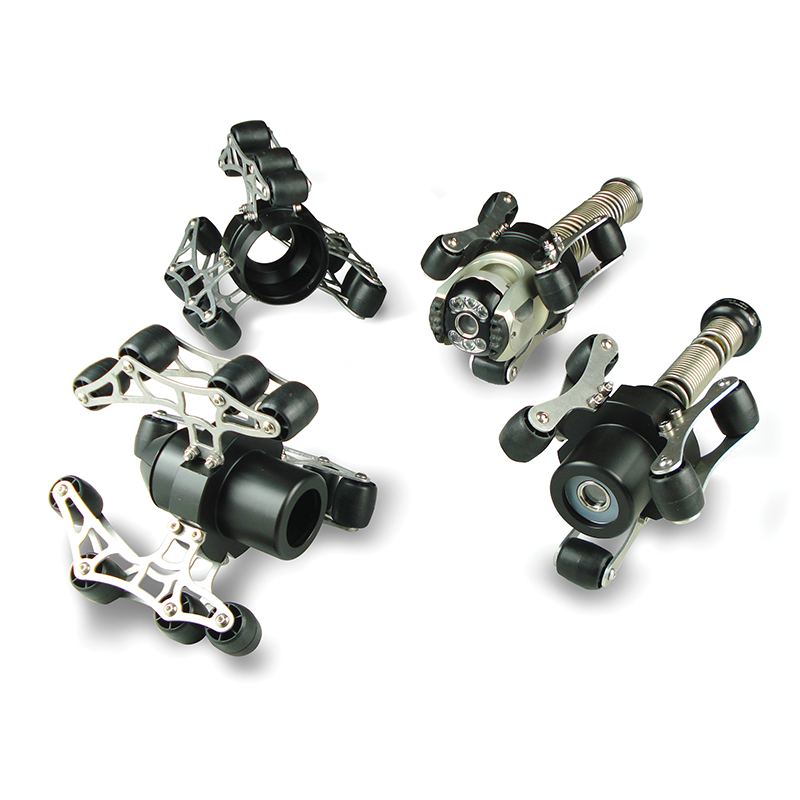

ACCESSORIES

Enhance your SOLOPro+ system with genuine Mini-Cam accessories



PROTEUS CRAWLERS



4 versatile sizes. Engineered to excel in challenging environments

Proteus CRP300

Rugged,Reliable, Made for Challenges

The Proteus™ CRP300 is a beast of a crawler, substantially solid enough to provide unparalleled inspection possibilities in larger diameter pipes with high flow rates. Made for challenges “The Beast” makes easy work of some of the more difficult environments, and gives even more benefits as part of the wider Proteus system.

The Beast has all the features and functionality of its smaller,

more compact partners — CRP150, CRP140 and the miniaturised CRP90 — and the same professional-grade quality, reliability and accuracy our customers expect from Proteus products.

Proteus CRP150

The Tried and Tested Favourite of Industry Experts

CRP150 was the first crawler Mini-Cam developed for its Proteus™ range. Tried, tested and modified to perfection. Our customers have come to rely on the CRP150 time-and-time again for efficient pipeline surveys. Feature-rich, the crawler includes as standard all Mini-Cam's innovative and unique connections, locks, devices and accessories to provide users with probably the most versatile crawler on the market today.

Proteus CRP140

Our Best Selling Crawler body with a Motorised Elevator

Modelled on our best selling Proteus™ CRP150 crawler, this compact, nickel-plated brass body, sports a newly developed motorised elevator, plus all Mini-Cam's innovative and unique connections, locks, and devices. With a proven track record of Proteus performance and reliability, users can rest assured the CRP140 will improve productivity, and deliver quality inspections time-and-time again.The rapidly expanding range of Proteus accessories provides unlimited versatility.

Proteus CRP90

The smallest crawler we have developed. Massive capabilities skilfully miniaturised

Proteus™ CRP90 is packed with innovative features including an in-built motorised lift which enables the camera to be centred in pipe diameter of up to 300mm(12inch), in-built lowering device for quick and easy deployment and retrieval, flexible rear connector to reduce cable stress and Mini-Cam's patented quick-change wheels. CRP90's compact size allows it to easily survey relined 100mm pipes.
